Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm (32162)

Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm
Product Description

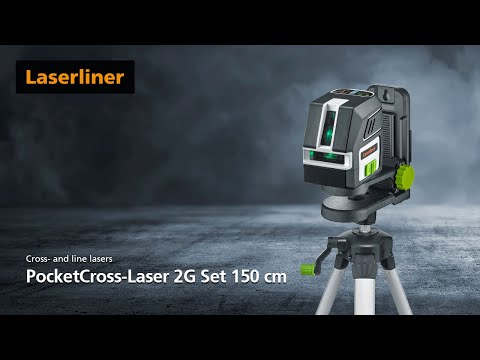

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for setting creating gradients. A versatile range of accessories means this laser is the solution for any precision alignment job. The compact tripod has a wide adjustment range due to the multi-section telescopic legs and a crank (30 cm stroke). The PocketWallHolder, a multi-functional, height-adjustable magnetic bracket, is suitable for attaching to walls, metal items, and tripods with a 1/4” or 5/8” thread. Supplied with battery pack.

  • Accurate horizontal and vertical alignment of objects
  • Good visibility through green laser technology
  • Easy alignment of slopes with manual tilt function
  • Light and robust compact tripod 150cm
  • Crank height adjustment and telescopic tripod legs
  • Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
  • Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
  • Laser enhancement glasses for optimum visibility of laser lines with the human eye
  • Time-saving automatic alignment
  • Supplied with battery pack
Horizontal/vertical levelling Yes
Manual slope function Yes
Battery and mains operation Yes
Hand receiver mode Yes
Self-Levelling Range ± 3.5° (horizontal)
Accuracy ±0.3 mm/m
Levelling Automatic
Visibility (Typical)* 55 m
Laser Wavelength 515nm
Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A
Operating Time approx. 15 hours
Operating Conditions 0°C … 50°C
Dimensions (W x H x D) 91 mm x 82 mm x 60 mm
Weight 334g (incl. Akkupack)
1 x Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm
1 x Compact tripod 150 cm
1 x PocketWallHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. internatio
nal adapter
1 x USB-C-cable
1 x Carrying case

Laserliner

4 years

For further information please visit our warranty page.
