Laserliner 036.730E SmartCross-Laser GX Cross-Line Laser (32158)

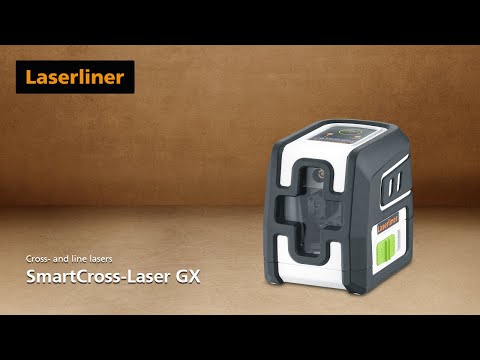

Laserliner 036.730E SmartCross-Laser GX Cross-Line Laser
Product Description

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also offers a manual slope function for easy creation of gradients and a 1/4” thread for mounting on a tripod. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability. Supplied with battery.

  • Sustainable design: large proportion of the housing is made from recycled plastic
  • Accurate horizontal and vertical alignment of objects
  • Good visibility through green laser technology
  • Easy alignment of slopes with manual tilt function
  • Time-saving automatic alignment
  • Integrated hand-held receiver mode for outdoor applications
  • Visual signals indicate when the device is outside its self-levelling range
  • Pendulum restraint for safe transport
  • Supplied with battery
Horizontal/vertical levelling Yes
Manual slope function Yes
Battery operation Yes
Hand receiver mode Yes
Self-Levelling Range ± 4°
Accuracy ±0.3 mm/m
Levelling Automatic
Visibility (Typical)* 40 m
Laser Wavelength 515 nm
Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply 2 x 1.5V LR6 (AA)
Operating Time approx. 6 hours
Operating Condition -10°C … 50°C
Storage Conditions -20°C … 70°C
Dimensions (W x H x D) 84 mm x 76 mm x 62 mm
Weight (incl. Batteries)
1 x Laserliner 036.730E SmartCross-Laser GX Cross-Line Laser
1 x Batteries

Laserliner

4 years

For further information please visit our warranty page.
